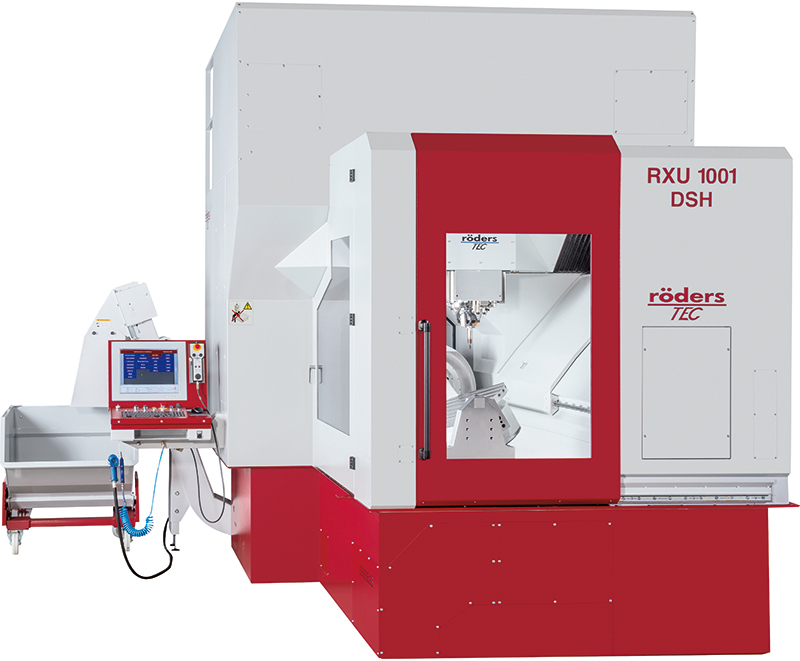

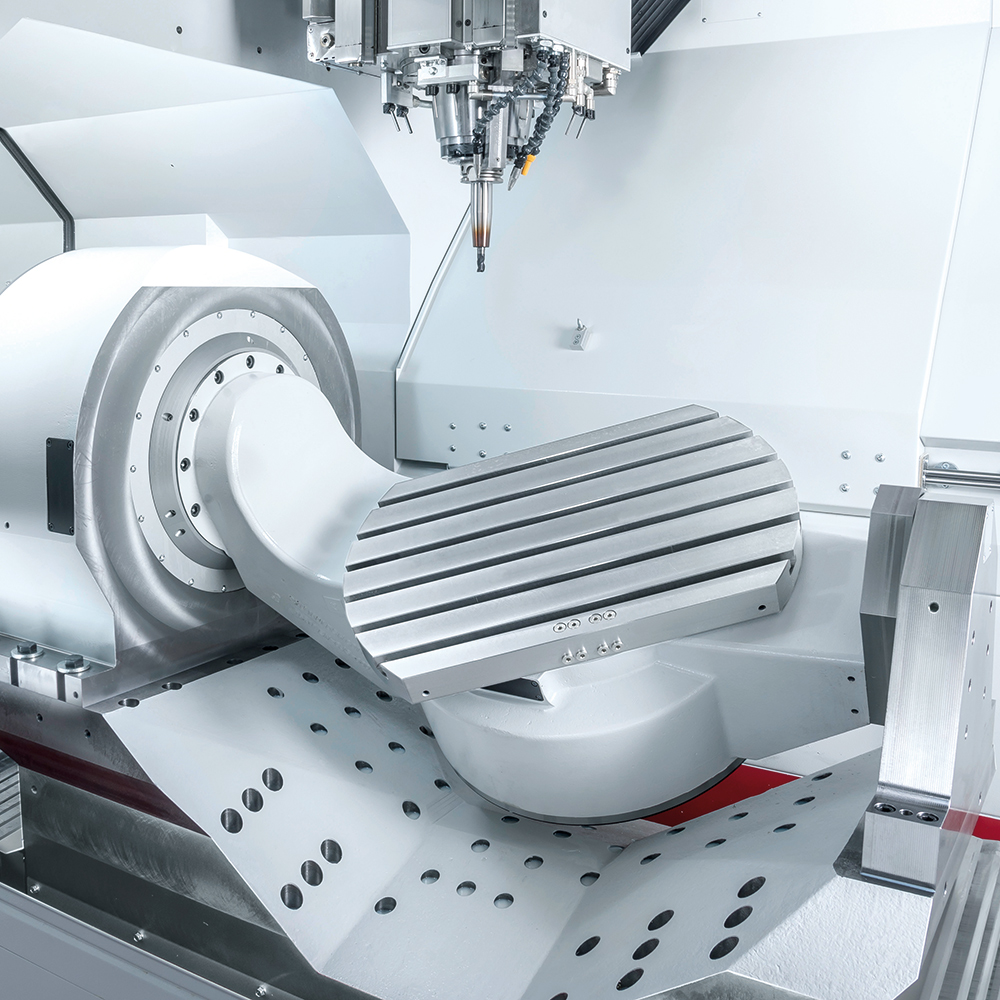

Maschine RXU1001

With QUADROGUIDE® for high rough­ing capac­i­ty, dynam­ics and precision

  • All axes with direct drives
  • Milling spin­dle may be cho­sen depend­ing on the appli­ca­tion, up to 101 Nm (S1) available
  • Ide­al for forg­ing dies, mould and die mak­ing, aero­space indus­try, med­ical appli­ca­tions, machine pro­duc­tion and part manufacturing
Tech­ni­cal data
Machin­ing range1000 mm x 810 mm x 500 mm
Table size996 mm x 798 mm
Max. height700 mm between spin­dle nose and machine table,
680 mm clear­ance between machine table and portal
Work­piece weightmax. 2,000 kg
Feed0–60,000 mm/min
Milling spin­dle (stan­dard)24,000 rpm, 67 Nm (S1), HSK A63,
max. tool diam­e­ter 35 mm (oth­ers on request)
Tool chang­er24 (rotary – can be loaded dur­ing machin­ing),
option­al 40, 75 or more places (chain chang­er – can be loaded dur­ing machin­ing), inte­grat­ed mea­sur­ing laser
Chip dis­pos­alWith 2 screws into chip box behind the machine or with addi­tion­al chip conveyor
Machine weight~19.5 t
Required spaceW 3500 mm x L 4814 mm with HC (depend­ing on con­fig­u­ra­tion) x H 3300 mm

Down­load Floor­plan RXU1001 — 140 kB
