RXP950 / RXP950DSH

RXP950 / RXP950DSH

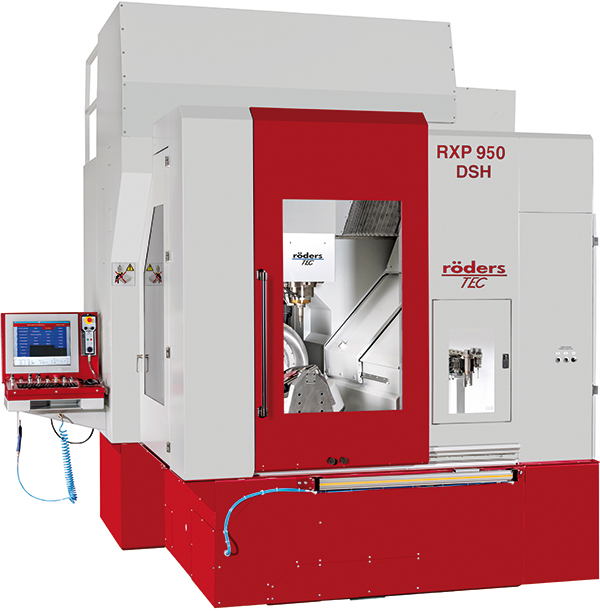

RXP950DSH
  • A high­ly dynam­ic machine rel­a­tive to its size, thanks to its weight-opti­mised design
  • Mould and die mak­ing, pro­duc­tion parts
  • Largest spin­dle with HSK A63 interface

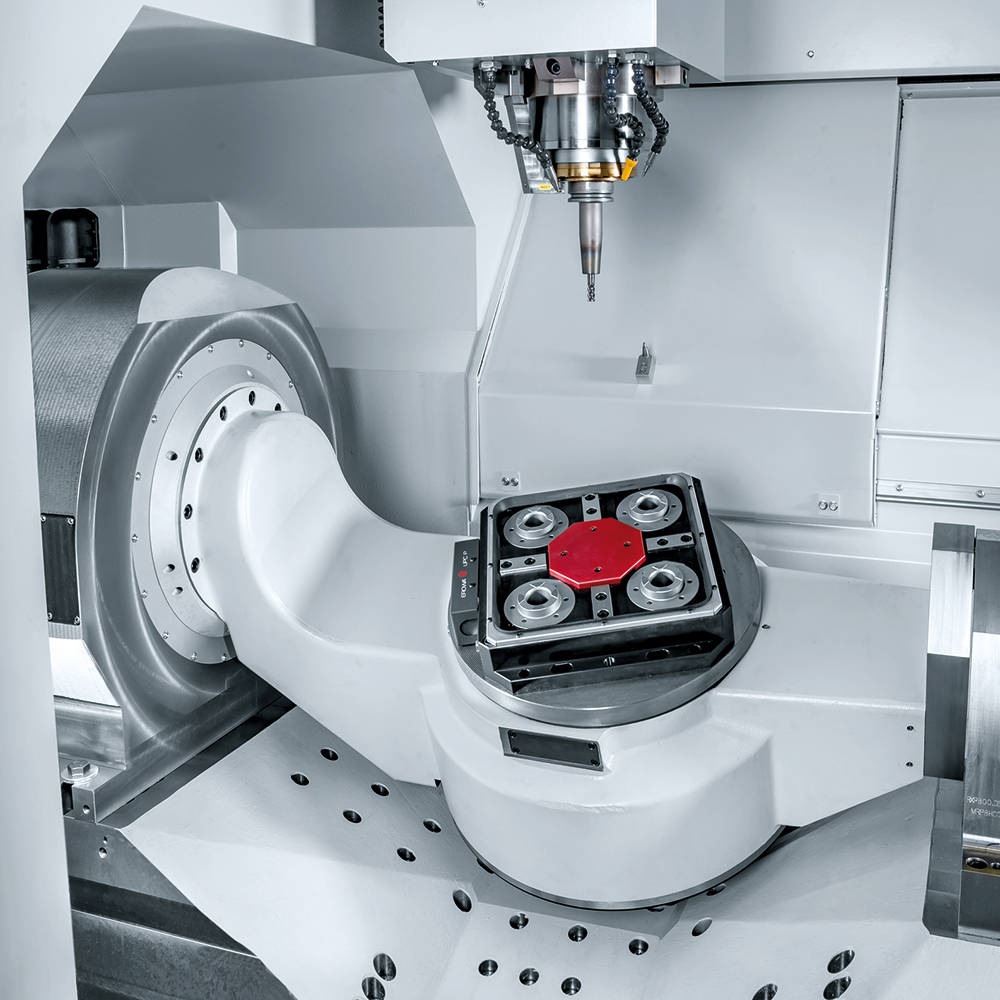

RPT950DSH Innenraum – Machining area
Rotary-swiv­el unit of the RXP950DSH with EROWA UPC chuck,
also larg­er tables and chucks possible
Tech­ni­cal dataRXP950RXP950DSH
Machin­ing range950 mm x 905 mm x 500 mm600 mm x 905 mm x 500 mm
Swiv­el­ling range–+/-115 degrees
Rota­tion range–Almost unlim­it­ed
Table size950 mm x 796 mm400 mm round or 400 mm square, 600 mm round with two flat­tened sides or 600 mm round
Work­piece weightmax. 2,000 kgmax. 800 kg
Feed0–60,000 mm/min0–60,000 mm/min
Milling spin­dle (stan­dard)36,000 rpm, 15 kW, HSK E50, max. tool diam­e­ter 20 mm, oth­ers on request36,000 rpm, 15 kW, HSK E50, max. tool diam­e­ter 20 mm
Tool chang­er40 for HSK E50, option­al 94 or more places (chain chang­er – can be loaded dur­ing machin­ing), inte­grat­ed mea­sur­ing laser40 for HSK E50, option­al 86 or more places (chain chang­er – can be loaded dur­ing machin­ing), inte­grat­ed mea­sur­ing laser
Chip dis­pos­alWith 2 screws into chip box behind the machine, addi­tion­al chip con­vey­or optional
Machine weight~14.5 t~15.5 t
Required spaceB 3350 mm x L 3350 mm x H 3180 mmW 3350 mm x L 3250 mm (depend­ing on con­fig­u­ra­tion) x H 3500 mm
