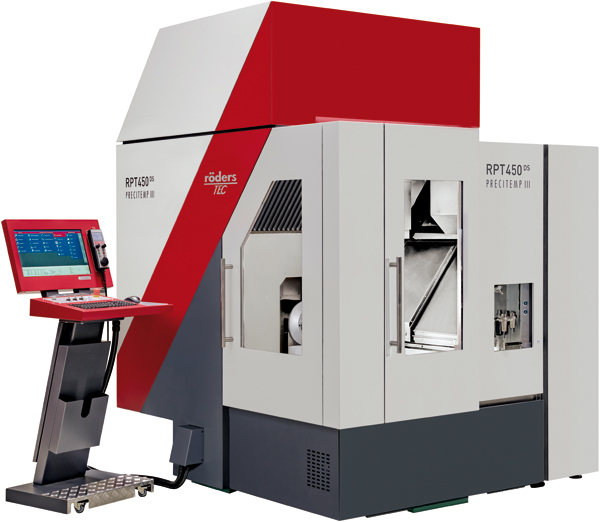

RPT450DS

Roeders Precision Technologies –
RPT450DS

RPT450DS

Milling, grind­ing, mea­sur­ing in one machine

  • Sev­er­al years of ground­break­ing devel­op­ments are the foun­da­tion of the RPT series
  • Max­i­mum pre­ci­sion, even bet­ter sur­faces and short­er pro­cess­ing times lead to sig­nif­i­cant increas­es in pro­duc­tiv­i­ty in mould and die mak­ing as well as pro­duc­tion applications
  • PRECITEMP®-Tech­nol­o­gy in the dif­fer­ent lev­els I, II and III for high­est pre­ci­sion also if ambi­ent tem­per­a­tures of the machine are not stable
  • All options known from the RXP series are ful­ly available
  • For small work­pieces, nev­er­the­less for 5‑axis machin­ing pow­er­ful chuck for vibra­tion-free machin­ing integrated
  • Biggest spin­dle with HSK E40 interface
  • Milling, grind­ing and mea­sur­ing as well as all lubri­cants available
PRECITEMP Graphic Running Characteristics of the Linear Guideways
NANOTOL® Guide­way concept

In coop­er­a­tion with a well-known guide­way man­u­fac­tur­er, a quan­tum leap in the run­ning behav­iour of the guide­ways with tol­er­ances in nanome­tre range was achieved, which offers con­sid­er­able advan­tages, espe­cial­ly for appli­ca­tions with high sur­face require­ments. The gen­er­ous dimen­sion­ing of the guide­ways ensures high rigid­i­ty and long durability.

PRECITEMP Efficiency and Durability
Dura­bil­i­ty and ener­gy efficiency

The RPT series was designed for dura­bil­i­ty and ener­gy effi­cien­cy down to the last detail.
The con­trol cab­i­net is usu­al­ly inte­grat­ed into the machine tool. For the RPT series, the elec­tri­cal cab­i­net stands alone next to the machine so that elec­tron­ic com­po­nents are not affect­ed by vibra­tions from machin­ing or the dynam­ics of the machine. In addi­tion, the high weight of the machine and the large dis­tance between the machine feet ensure low stress despite the high dynam­ics of the axes. Numer­ous mea­sures have been under­tak­en to sig­nif­i­cant­ly reduce ener­gy con­sump­tion, e.g. a pow­er-con­trolled cool­ing unit.

Roeders of America Design and Ergonomics RPT600DSH
Design and Ergonomics

The mod­ern design of the RPT series reflects the high pre­ci­sion and dynam­ics of the machine tech­nol­o­gy. Par­tic­u­lar impor­tance was devot­ed to sim­plest oper­a­tion, like unlock­ing the doors at the touch of a but­ton on the ter­mi­nal. The good acces­si­bil­i­ty of the machin­ing area from two sides, well known from Roed­ers, has been main­tained, which offers great advan­tages, espe­cial­ly for auto­mat­ed machines.

Tech­ni­cal data
Machin­ing range370 mm x 490 mm x 280 mm
Swiv­el­ling range+/- 115 degrees
Rota­tion rangeAlmost unlim­it­ed
Table size250 mm round
Clamp­ing unitErowa ITS148 Pow­er­Chuck / Sys­tem 3R Mag­num / Parotec Pow­er Grip 160
Work­piece weightmax. 30 kg
Feed0–60,000 mm/min
Milling spin­dle (stan­dard)42,000 rpm, 15 kW, HSK E40,
max­i­mum tool diam­e­ter 16 mm, oth­ers on request
Tool chang­er31 or 75 places for HSK E40,
option­al larg­er chang­er avail­able,
inte­grat­ed mea­sur­ing laser
Chip dis­pos­alWith 1 screws into chip box behind the machine
or with addi­tion­al chip con­vey­or or chip tray
Machine weight~8.0 t
Required spaceW 2020 mm x L 2670 mm x H 2700 mm

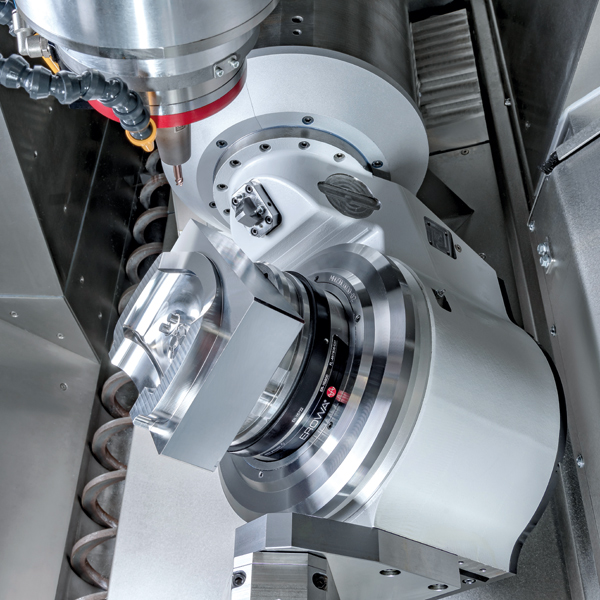

Machining range RPT450DS
Machin­ing area RPT450DS
  • Very effi­cient due to high stiff­ness and opti­mum lay­out of the mass inertia
  • Two-sided sup­port of the C‑axis for high sta­bil­i­ty and precision
  • High res­o­lu­tion opti­cal encoders in all axes
  • Pow­er­ful wear-free direct dri­ves in all axes
  • Spe­cial Roed­ers 5‑axis geom­e­try com­pen­sa­tion for high pre­ci­sion, also at long last­ing machin­ing operations
  • Pre­cise tem­per­a­ture con­trol of the machine elements
  • For dynam­ic decou­pling, the swiv­el­ling direc­tion is at right angles to the X axis
  • Win­dows very close to the machin­ing area, vis­i­ble from two sides
  • Chucks for dif­fer­ent pal­let sys­tems can be inte­grat­ed into the C‑table

Down­load Stroke posi­tion RPT450DS
