RXU2000/ RXU2600

RXP2002 / RXU2600

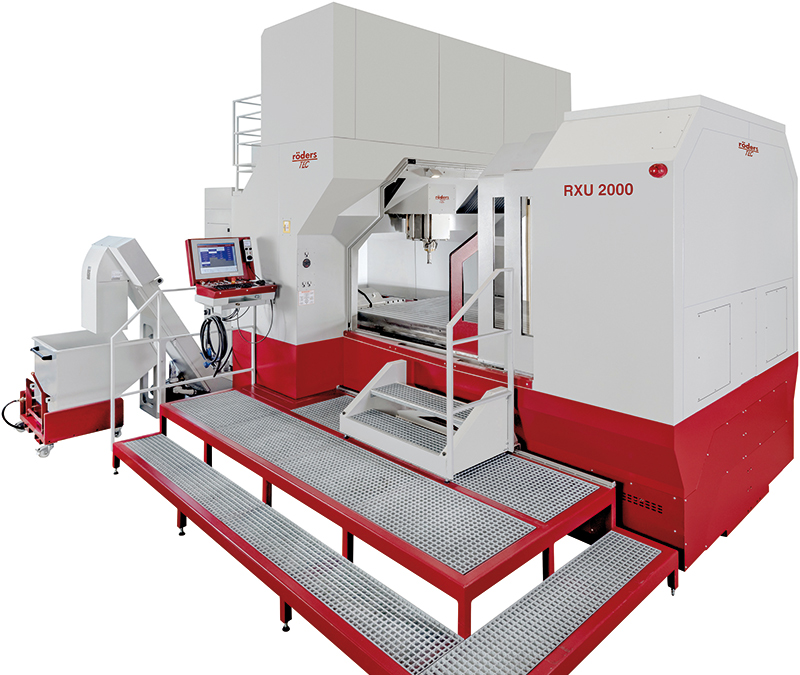

RXU2000
  • The RXU2000 and RXU2600 are each avail­able in two ver­sions, with either a rather squared or an elon­gat­ed table
  • With the option­al tem­per­a­ture con­trol of the machin­ing area, high-pre­ci­sion machin­ing of even very large work­pieces can be achieved, par­tic­u­lar­ly when using tem­per­a­ture-con­trolled grind­ing oil
  • Ide­al­ly suit­ed for the pro­duc­tion of large pro­gres­sive dies
  • Crane load­ing is pos­si­ble from both sides
  • Largest spin­dle with HSK A63 inter­face, 102 Nm (S1)
Tech­ni­cal dataRXU2000RXU2600
Machin­ing range2000 mm x 1800 mm x 800 mm or 2400 mm x 1400 mm x 800 mm2600 mm x 1800 mm x 800 mm or 3000 mm x 1400 mm x 800 mm
Table size2000 mm x 1750 mm or 2300 mm x 1750 mm, T‑slots 22 mm, dis­tance 170 mm2600 mm x 1750 mm or 2900 mm x 1750 mm, T‑slots 22 mm, dis­tance 170 mm
Max. height1000 or 950 mm between spin­dle nose and machine table1000 or 950 mm between spin­dle nose and machine table
Work­piece weightmax. 5,000 kgmax. 6,000 kg
Feed0–60,000 mm/min0–60,000 mm/min
Milling spin­dle (stan­dard)24,000 rpm, 67 Nm (S1), HSK A63, max. tool diam­e­ter 35 mm, oth­ers on request
Tool chang­er86, option­al more places (chain chang­er – can be loaded dur­ing machining)
Mea­sur­ing laserPlaced aside the table with chip protectionPlaced aside the table with chip protection
Chip dis­pos­alWith 2 screws into chip conveyor
Machine weight~49.0 t~55.0 t
Required spaceW 5510 mm x L 6500 mm (depend­ing on con­fig­u­ra­tion) x H 4350 mmW 5510 mm x L 7965 mm (depend­ing on con­fig­u­ra­tion) x H 4350 mm
