RPT450 / RPT450DS

RPT450 / RPT450DS

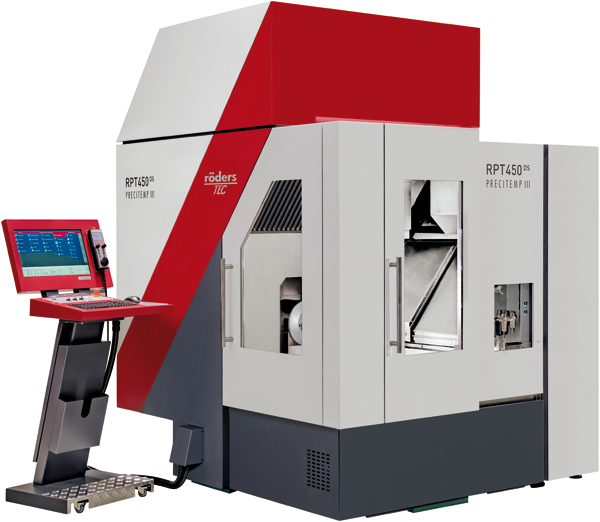

RPT450DS
  • For small work­pieces, nev­er­the­less for 5‑axis machin­ing pow­er­ful chuck for vibra­tion-free machin­ing integrated
  • Biggest spin­dle with HSK E40 interface
  • Milling, grind­ing and mea­sur­ing as well as all lubri­cants available

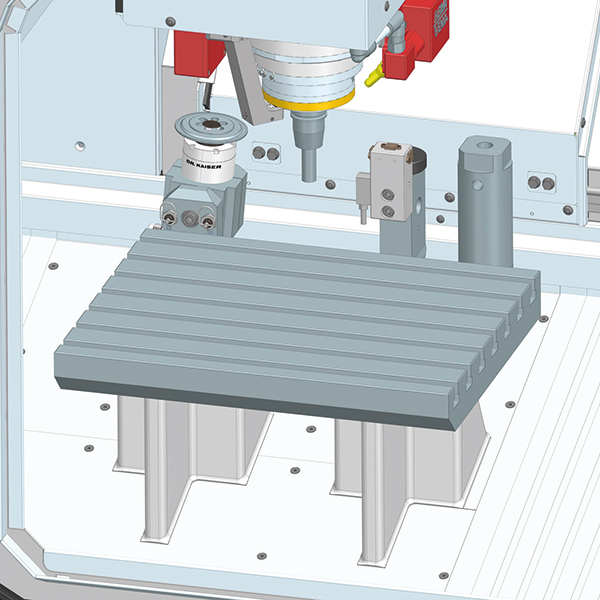

RPT450 Innenraum – Machining area
Machin­ing area RPT450

The 3‑axis RPT450 is suit­able for using EROWA UPC pal­lets. Aux­il­iary equip­ment, such as for grind­ing, is posi­tioned next to the machine table.

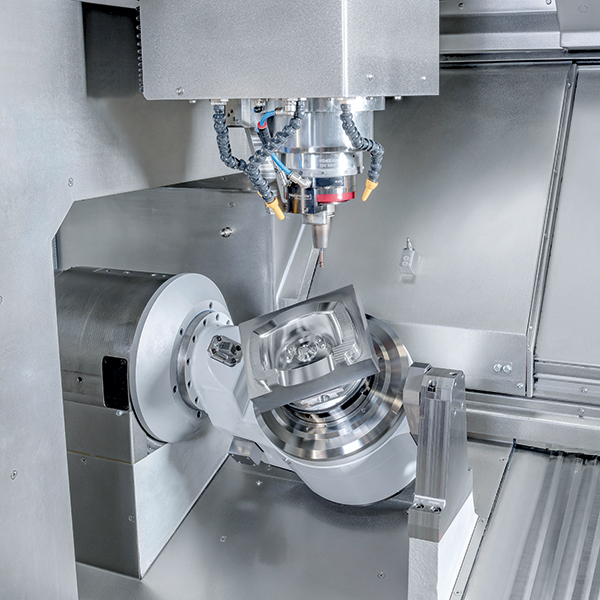

RPT450DS Innenraum – Machining area
Machin­ing area RPT450DS

In the 5‑axis RPT450DS, any aux­il­iary equip­ment, such as for grind­ing, is mount­ed at the A‑axis

Tech­ni­cal dataRPT450RPT450DS
Machin­ing range470 mm x 490 mm x 280 mm370 mm x 490 mm x 280 mm
Swiv­el­ling range–+/- 115 degrees
Rota­tion range–Almost unlim­it­ed
Table size450 mm x 360 mm, T‑slots 14 mm250 mm round
Clamp­ing unitErowa UPC / Sys­tem 3R Dynafix / Parotec Pow­er Grip 160Erowa ITS148 Pow­er­Chuck / Sys­tem 3R Mag­num / Parotec Pow­er Grip 160
Work­piece weightmax. 200 kgmax. 30 kg
Feed0–60,000 mm/min0–60,000 mm/min
Milling spin­dle (stan­dard)42,000 rpm, 15 kW, HSK E40, max. tool diam­e­ter 16 mm, oth­ers on request
Tool chang­er31 or 75 places for HSK E40, option­al larg­er chang­er avail­able, inte­grat­ed mea­sur­ing laser
Chip dis­pos­alWith 1 screws into chip box behind the machine or with addi­tion­al chip con­vey­or or chip tray
Machine weight~8.0 t~8.0 t
Required spaceW 2835 mm x L 2700 mm x H 2720 mmW 2835 mm x L 2700 mm x H 2720 mm
