Röders RPT800DSH
  • Extra-long stroke in the Z‑axis, also suit­able for deep drilling
  • Very large and there­with rigid guideways
  • Largest spin­dle with HSK A63 interface
  • Milling, grind­ing and mea­sur­ing as well as all lubri­cants possible

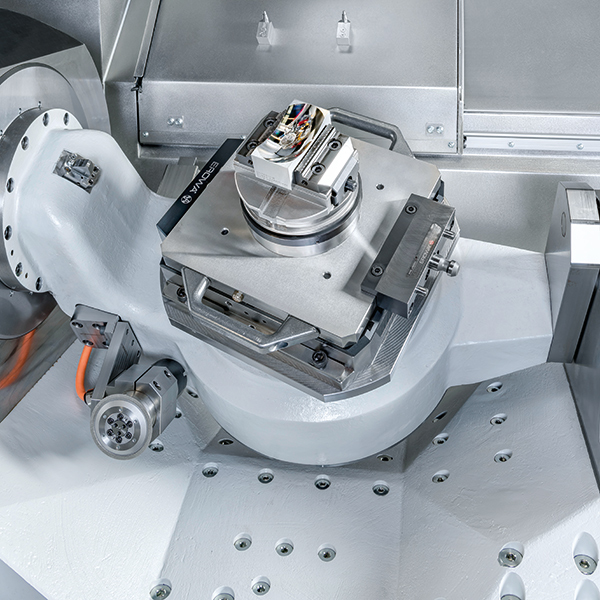

RPT800DSH Innenraum – Machining area
Machin­ing area RPT800DSH

In addi­tion to its long machin­ing range of the Z‑axis, the RPT800DSH also offers a rel­a­tive­ly large max­i­mum diam­e­ter for workpieces.

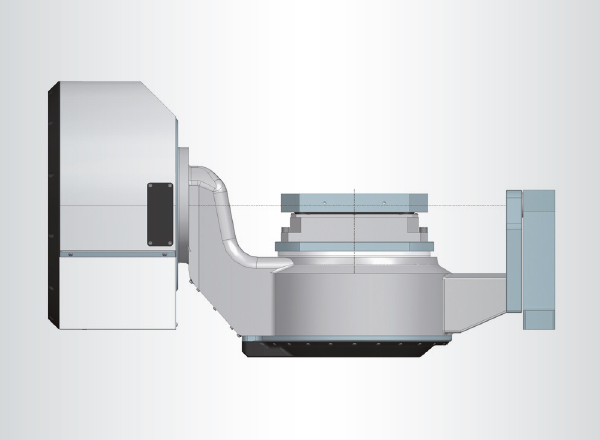

RPT800DSH Verbesserte Kroepfung – Better Offset
Bet­ter off­set of c‑axis

In the RPT800DSH, also work­pieces clamped with a pal­let on a chuck — such as EROWA UPC — are posi­tioned close to the swiv­el axis. This reduces the com­pen­sat­ing move­ments of the lin­ear axes dur­ing 5‑axis machin­ing.
Machin­ing times are short­er and pre­ci­sion is improved.

Tech­ni­cal dataRPT800RPT800DSH
Machin­ing range840 mm x 635 mm x 500 mm560 mm x 635 mm x 500 mm
Swiv­el­ling range–+/- 115 degrees
Rota­tion range–Almost unlim­it­ed
Table size796 mm x 596 mm, T‑slots 14 mm350 mm / 400 mm round or square
Clamp­ing unitIndi­vid­ual solu­tions pos­si­ble up to 600 mm widthErowa UPC, Erowa ITS148 Pow­er­Chuck, Erowa Pro­duc­tionChuck 210, Erowa MTS, Sys­tem 3R Dynafix, Parotec Pow­er-Grip 160
Work­piece weightmax. 800 kgmax. 200 kg
Feed0–60,000 mm/min0–60,000 mm/min
Milling spin­dle (stan­dard)36,000 rpm, 15 kW, HSK E50, max. tool diam­e­ter 20 mm, oth­ers up to HSK A63 on request
Tool chang­er40 or 84 places for HSK E50, option­al larg­er chang­er avail­able, inte­grat­ed mea­sur­ing laser
Chip dis­pos­alWith 2 screws into chip box behind the machine or with addi­tion­al chip conveyor
Machine weight~10.5 t~12.5 t
Required spaceW 3220 mm x L 3250 mm x H 3130 mmW 3220 mm x L 3250 mm x H 3410 mm

Down­load Stroke posi­tion RPT800DSH

Down­load Floor­plan RPT800 / RPT800DSH
