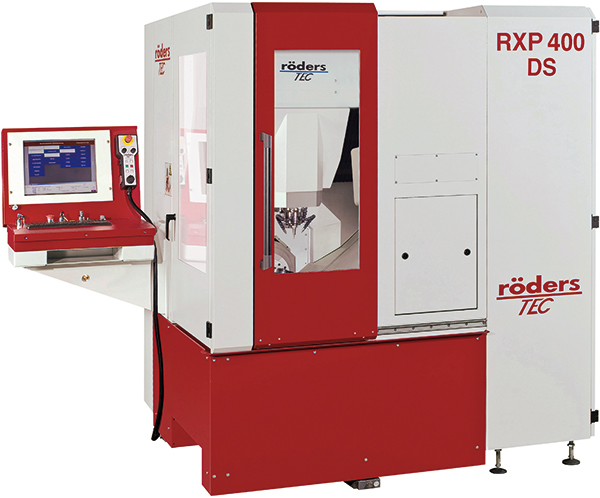

Maschine RXP400DS
  • High-pre­ci­sion micro-machin­ing with high rpm
  • Small moulds, elec­trodes, den­tal appli­ca­tions, small pro­duc­tion parts
  • Largest spin­dle with HSK E32 interface
  • Grind­ing not possible
Innenraum RXP400DS

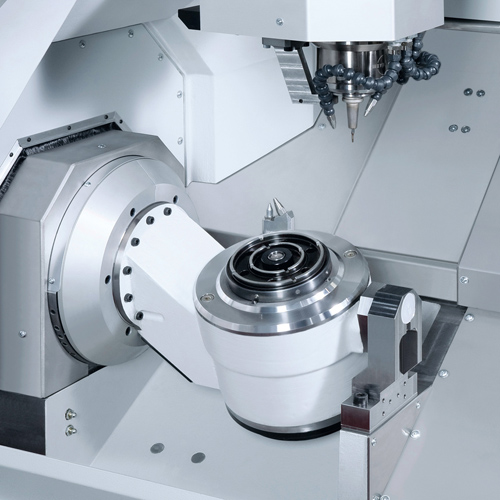

Rotary-swiv­el unit of the RXP400DS
Innenraum RXP400DSC

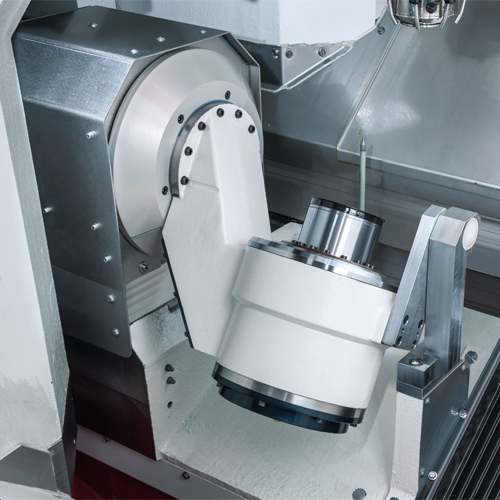

Rotary-swiv­el unit of the RXP400DSC
with large off­set and a swiv­el angle of up to 135 degrees
Tech­ni­cal dataRXP400RXP400DSRXP400DSC
Machin­ing range310 mm x 294 mm x 210 mm310 mm x 294 mm x 210 mm310 mm x 294 mm x 210 mm
Swiv­el­ling range–-30/+135 degrees-30/+135 degrees
Rota­tion range–Almost unlim­it­edAlmost unlim­it­ed
Table size450 mm x 300 mm, T‑slots 12 mm, dis­tance 50 mm (inte­grat­ed chucks optional)199 mm (inte­grat­ed chuck optional)199 mm (inte­grat­ed chuck optional)
Work­piece weightmax. 100 kgmax. 15 kgmax. 15 kg
Feed0–42,000 mm/min0–42,000 mm/min0–42,000 mm/min
Milling spin­dle (stan­dard)50,000 rpm, HSK E25 or 40,000 rpm, HSK E32, max. tool diam­e­ter 6 mm for HSK E25 and 10 mm for HSK E32, oth­ers on request
Tool chang­er18 (lin­ear), option­al 40, 70 or more places (chain chang­er – can be loaded dur­ing machin­ing), inte­grat­ed mea­sur­ing laser16 (lin­ear), option­al 40, 70 or more places
(chain chang­er – can be loaded dur­ing machin­ing), inte­grat­ed mea­sur­ing laser		16 (lin­ear), option­al 40, 70 or more places
(chain chang­er – can be loaded dur­ing machin­ing), inte­grat­ed mea­sur­ing laser
Chip dis­pos­alIn 1 chip box, option­al chip conveyor
Machine weight~3.2 t~3.2 t~3.2 t
Required spaceW 2480 mm x L 1995 mm x H 2080 mmW 2480 mm x L 1995 mm x H 2080 mmW 2480 mm x L 1995 mm x H 2160 mm
