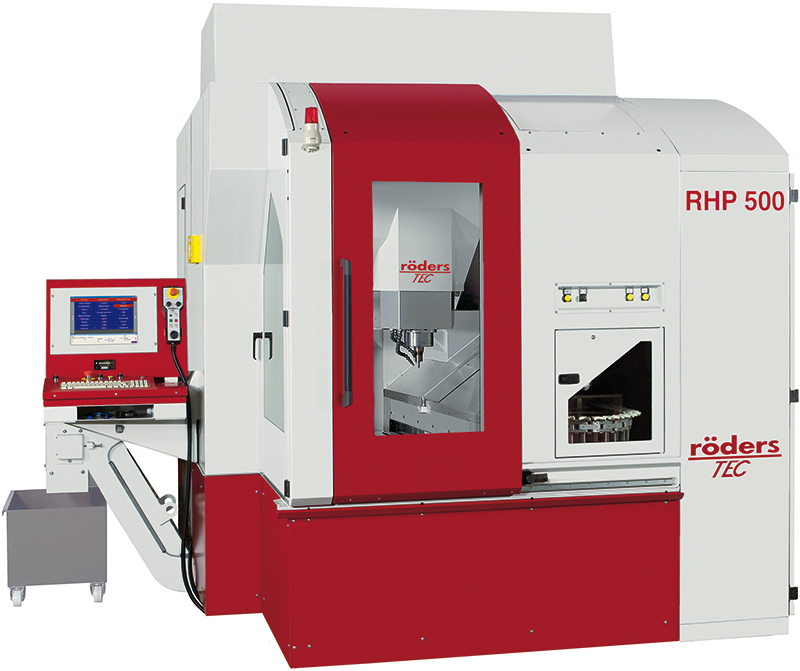

RHP500

RHP500

RHP500
  • Par­tic­u­lar­ly suit­able for spe­cialised appli­ca­tions requir­ing sub-microme­tre tolerances
  • Suit­able for all mate­ri­als, except dusty like graphite
  • The pre­ferred lubri­cant is tem­per­a­ture-con­trolled flush­ing oil
Tech­ni­cal dataRHP500
Machin­ing range500 mm x 552 mm x 300 mm
Table size600 mm x 540 mm
Max­i­mum height455 mm between spin­dle nose and machine table
Work­piece weightmax. 400 kg
Feed0–60,000 mm/min
Milling spin­dle (stan­dard)42,000 rpm, 14 kW, HSK E40, max. tool diam­e­ter 16 mm, oth­ers on request
Tool chang­er42 places (chain chang­er – can be loaded dur­ing machin­ing), inte­grat­ed tool mea­sur­ing laser
Chip dis­pos­alWith 2 screws into chip box behind the machine,
addi­tion­al chip con­vey­or optional
Machine weight~ 10.0 t
Required spaceW 3015 mm x L 2510 mm x H 2750 mm

Down­load Floor­plan RHP500
