RXP801 / RXP601DSH

RXP801 / RXP601DSH

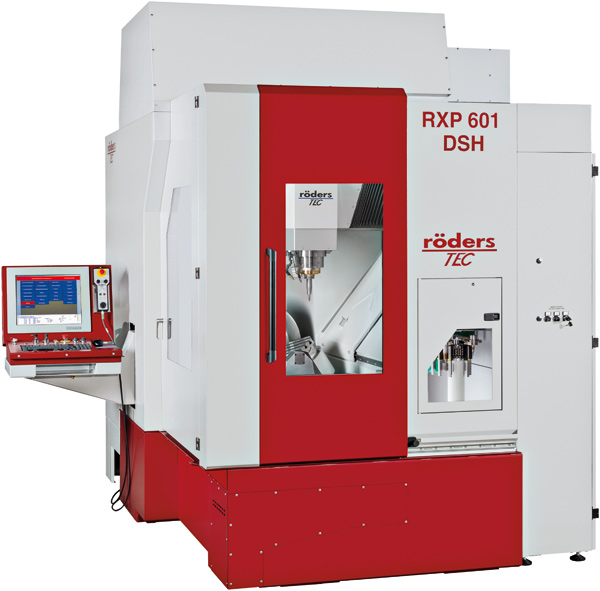

Röders Maschine RXP601DSH
  • Ide­al machine for moulds and work­pieces clamped on EROWA UPC pallets
  • Mould and die mak­ing, pro­duc­tion parts
  • Largest spin­dle with HSK A63 interface
RPT601DSH Innenraum – Machining area
Rotary-swiv­el unit of the RXP601DSH with EROWA UPC chuck
Tech­ni­cal dataRXP801RXP601DSH
Machin­ing range800 mm x 635 mm x 400 mm540 mm x 635 mm x 400 mm
Swiv­el­ling range–+/-115 degrees
Rota­tion range–Almost unlim­it­ed
Table size796 mm x 596 mm340 mm round or 340 mm square, 400 mm round with two flat­tened sides or 400 mm round
Work­piece weightmax. 800 kgmax. 200 kg
Feed0–60,000 mm/min0–60,000 mm/min
Milling spin­dle (stan­dard)36,000 rpm, 15 kW, HSK E50, max. tool diam­e­ter 20 mm, oth­ers on request
Tool chang­er36 for HSK E50, option­al 76 or more places (chain chang­er – can be loaded dur­ing machin­ing), inte­grat­ed mea­sur­ing laser
Chip dis­pos­alWith 2 screws into chip box behind the machine, addi­tion­al chip con­vey­or optional
Machine weight~8.4 t~10.2 t
Required spaceW 2900 mm x L 2950 mm (depend­ing on con­fig­u­ra­tion)
x H approx. 2820 / 2960 mm (depend­ing on spin­dle type)		W 2950 mm x L 2950 mm (depend­ing on con­fig­u­ra­tion)
x H approx. 3070 / 3210 mm (depend­ing on spin­dle type)

Down­load Floor­plan RXP801

Down­load Stroke posi­tion RXP601DSH

Down­load Floor­plan RXP601DSH
