Mould and Die Making

Röders Maschinenbau Uhrenarmband

Mould and Die Making

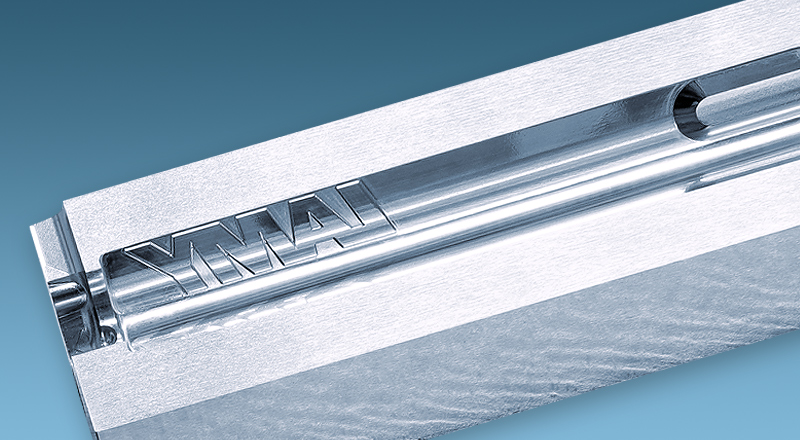

Detail Formeinsatz, Mould insert

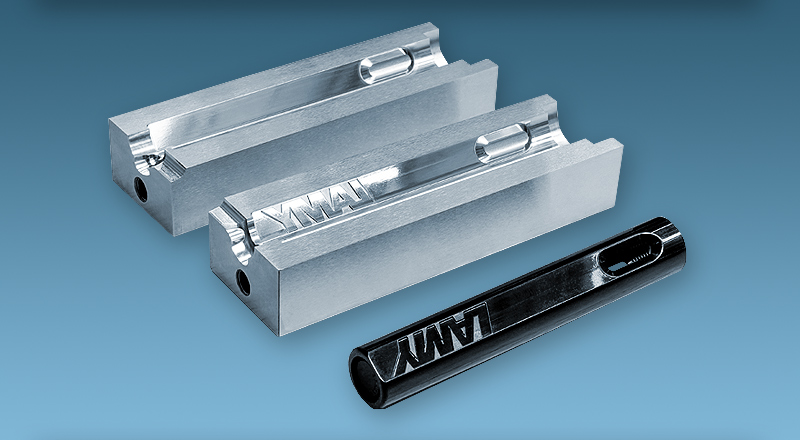

Hardened mould inserts for an injection mould
for reservoirs of fountain pens

The repeat­ably high dimen­sion­al accu­ra­cy and sur­face qual­i­ty made pos­si­ble by the Roed­ers tech­nol­o­gy com­plete­ly elim­i­nat­ed the need for the EDM process. The machines and an automa­tion con­cept from Roed­ers dras­ti­cal­ly reduced the num­ber of nec­es­sary pro­duc­tion steps: from 16 to just 4, with sig­nif­i­cant advan­tages in terms of effi­cien­cy, costs, and process reli­a­bil­i­ty. Read more about the project of the writ­ing instru­ment man­u­fac­tur­er Lamy in the tech­ni­cal report.

Formeinsatz, Mould insert

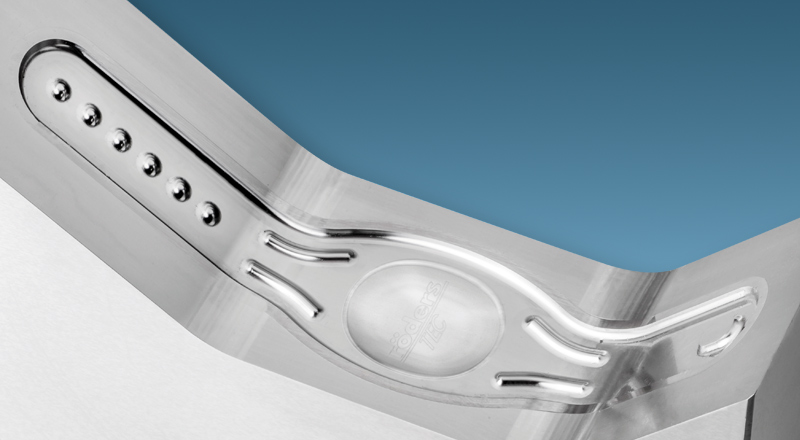

Röders Maschinenbau Mikroform Uhrenarmband
Liquid Silicon Rubber moulds

High­ly pre­cise 5‑axis machin­ing, no rework of part­ing sur­faces necessary

Druckgussform gross, Large die casting mould, © Röders GmbH

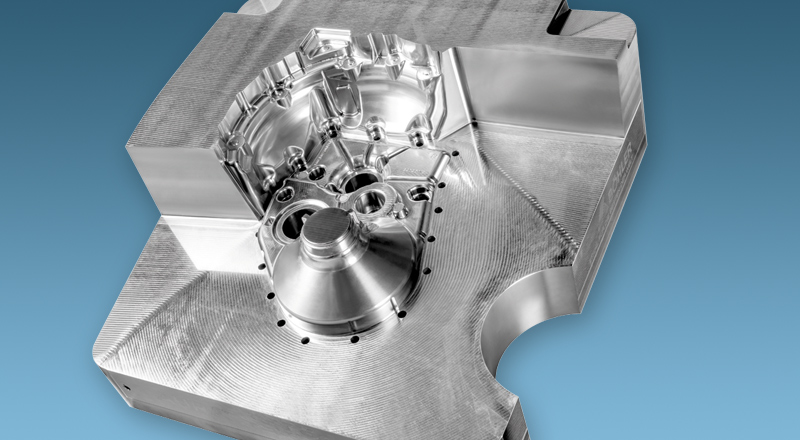

Die casting mould

Die cast­ing moulds are com­plete­ly (rough­ing and fin­ish­ing) machined direct­ly in hard­ened steel. The Roed­ers tech­nol­o­gy reli­ably achieves a sur­face qual­i­ty and accu­ra­cy which makes rework unnec­es­sary, even at mould part­ing surfaces.

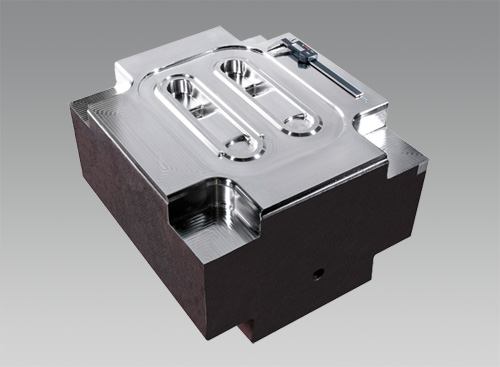

Die for chain links

Weigh­ing 1 t, this die was machined on the RXU1200 in 50% of the time pre­vi­ous­ly needed

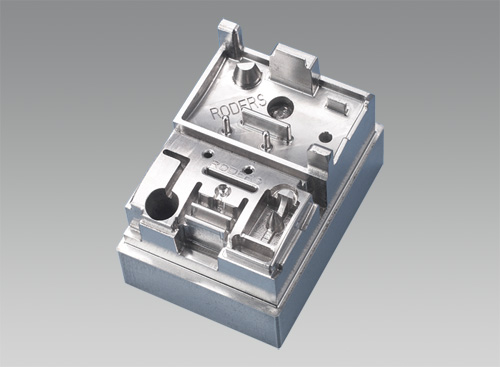

Micro-moulds

for the chip indus­try and oth­er sectors

Engraving width and depth 0.05 mm

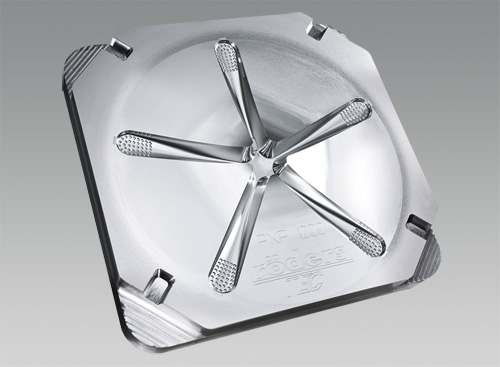

Injection mould

for a swiv­el-chair cov­er; dimen­sions approx. 1 m x 1 m

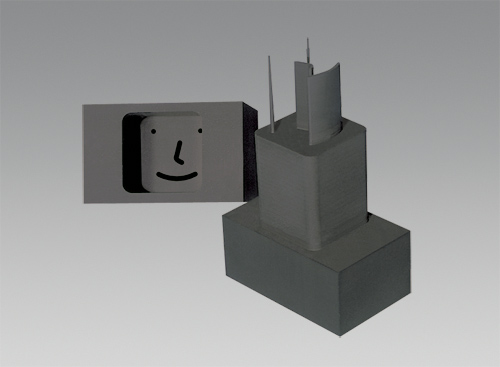

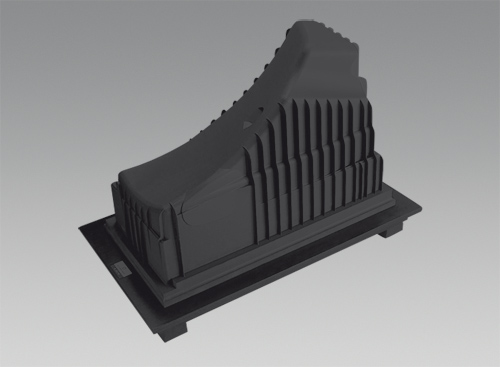

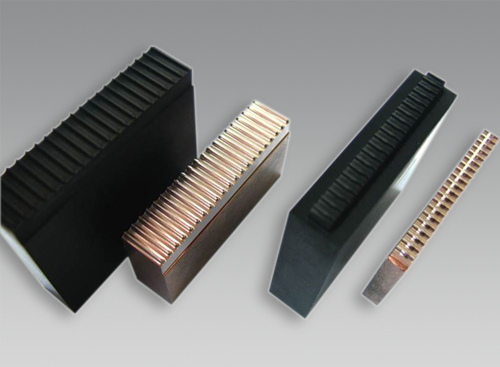

Electrodes

Milled with 5‑axis machines with­out any reworking

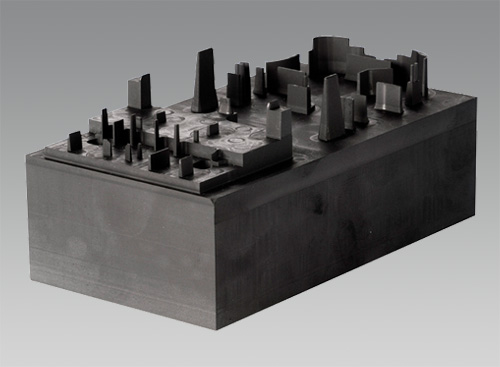

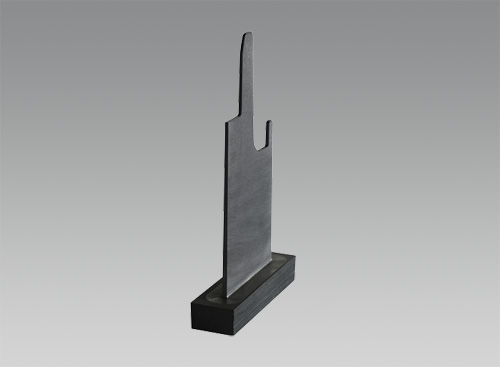

Electrodes

for con­nec­tors

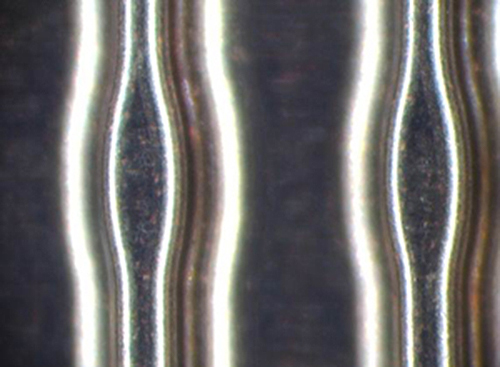

Detail

of elec­trodes for con­nec­tors above, small­est cut­ter Ø 0.8 mm, achieved Ra = 0.1 µm

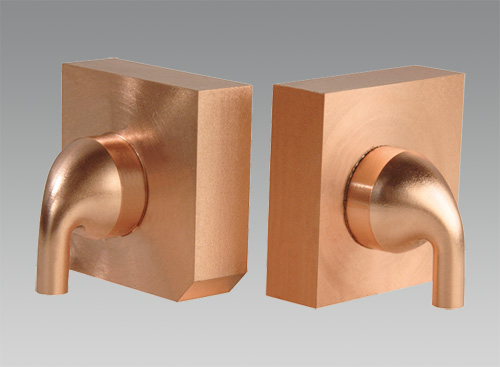

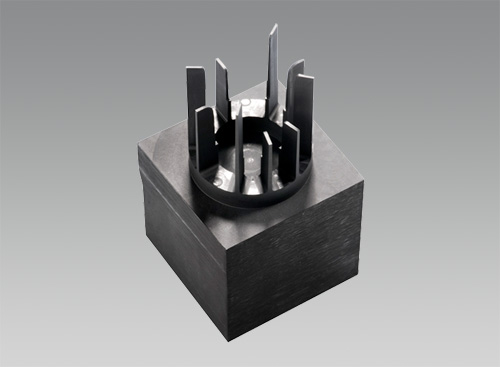

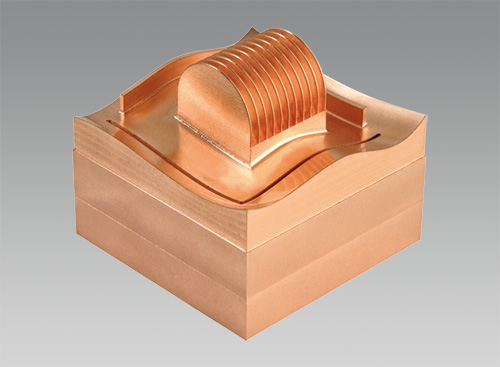

Elec­trodes
Milled with 3- and 5‑axis machines with­out any reworking

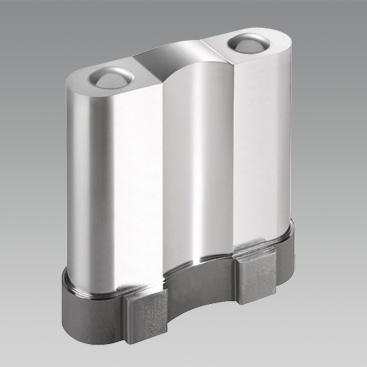

Tools for sheet metal forming

HSC milling and jig grind­ing with high pre­ci­sion in a sin­gle set-up

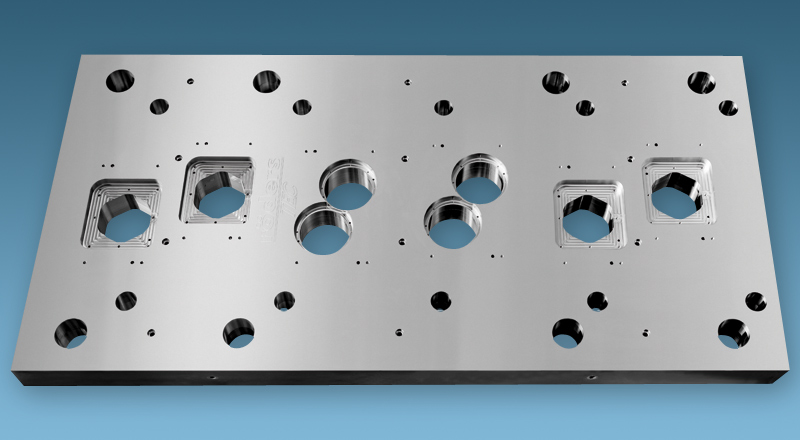

2 m lange Grundplatte, 2 m long base plate © Röders GmbH
2 m long base plate for progressive die

Rough­ing, pre­fin­ish­ing, grind­ing in one set-up on RXU2000

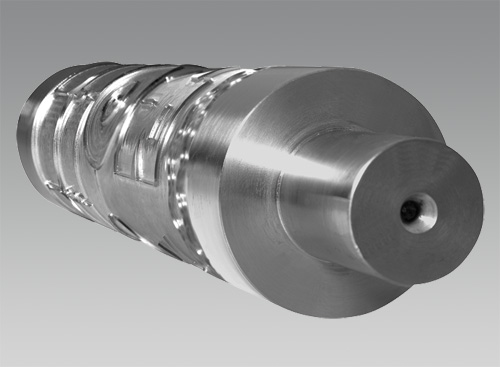

Cutting rollers

Spe­cial soft­ware avail­able for 4‑axis carving

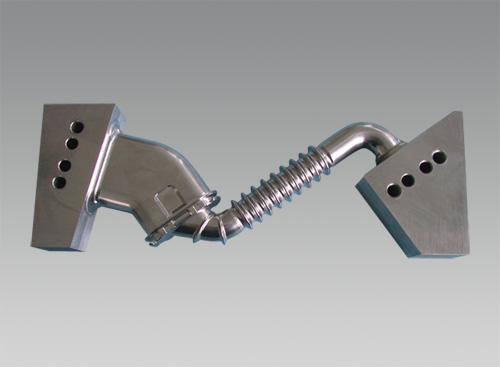

Rubber moulds

Machin­ing from all sides in one set-up

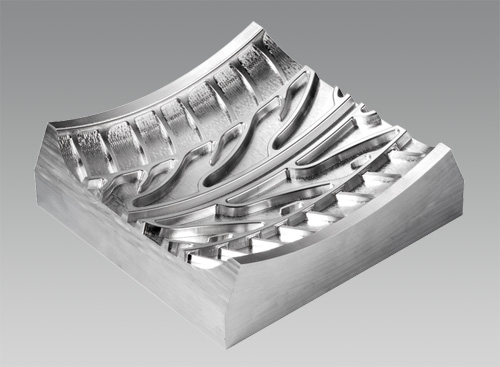

Tire moulds

Extreme dynam­ics for short­est machin­ing times

Röders GmbH Formen für Brennstoffzellen
Moulds for fuel cells

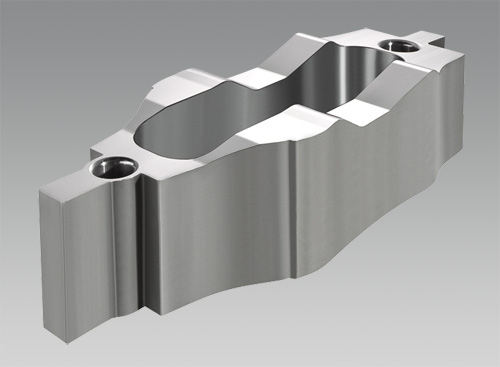

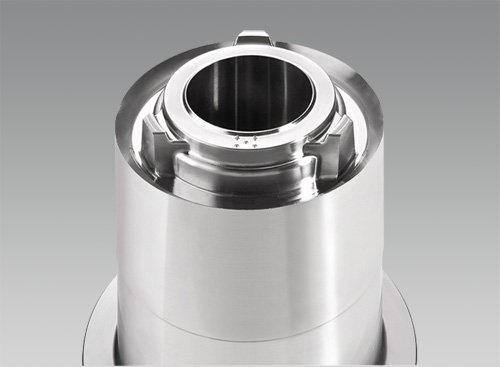

Cutting and forming die

HSC milling and jig grind­ing (tol­er­ance 1 µm) in a sin­gle set-up

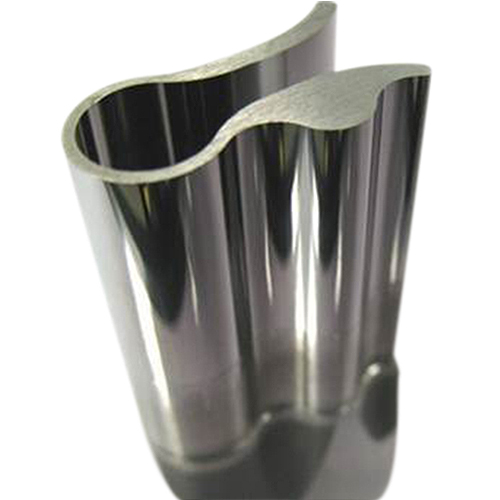

Blanking punch

Tol­er­ance < 1 µm over the full height

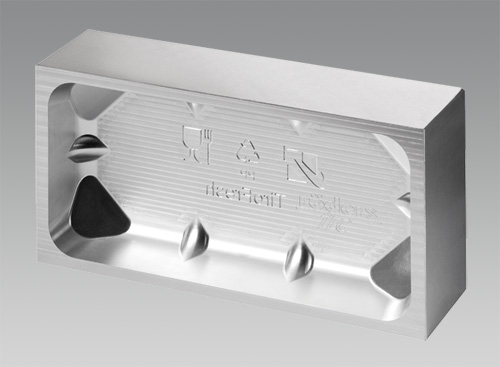

Package moulds

of high-ten­sile aluminium

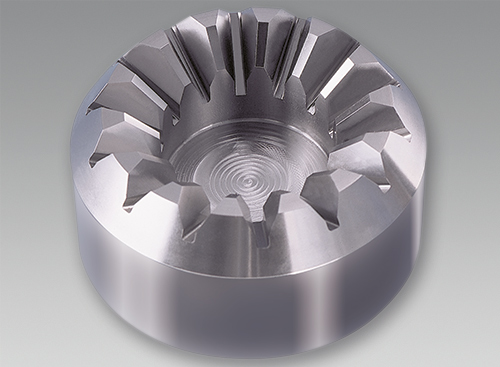

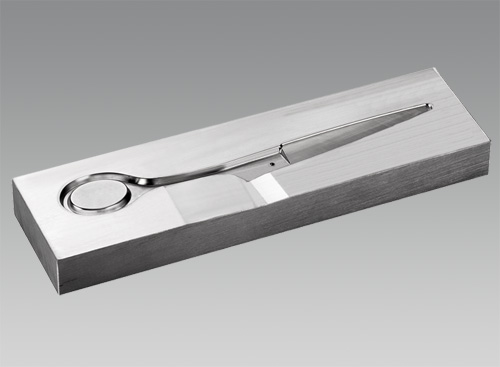

Precision forging dies

High rpm for pro­duc­ing small cor­ner radiuses

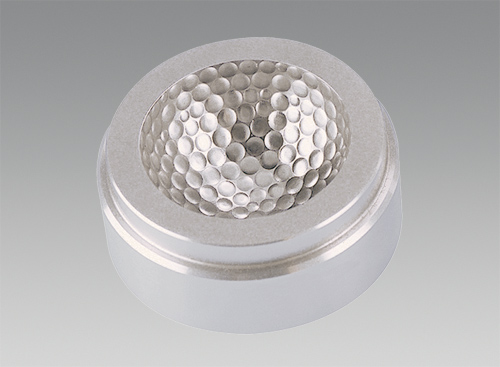

Injection moulds

with high pre­ci­sion in every detail

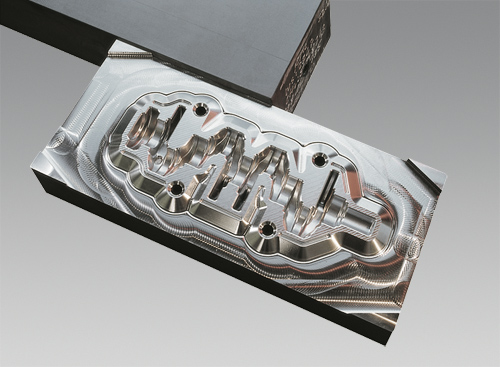

Crankshaft forging dies

in high-ten­sile steel with extreme cut­ter lengths, finish-machined

Complex plastic injection moulds

no longer requir­ing spark erosion

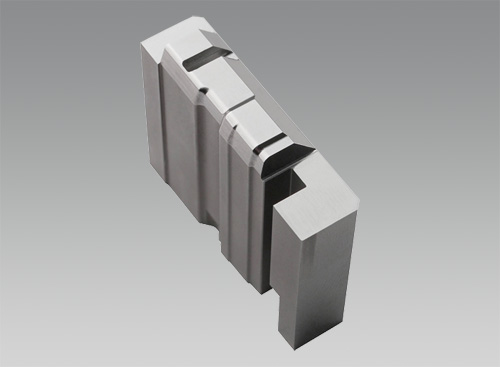

Embossing dies

fin­ish-machined in 70 HRC

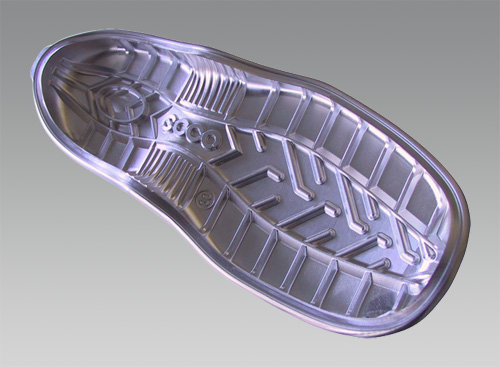

Shoe moulds

Alu­mini­um cut­ting with very short milling times
