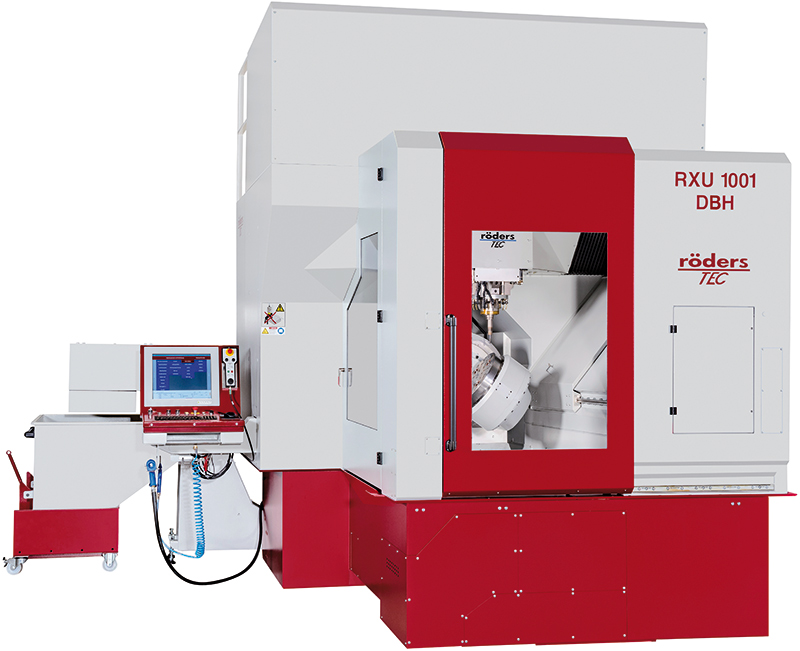

RXU1001DBH

RXU1001DBH

RXU1001DBH
  • RXU1001DSH with spe­cial C‑axis for machin­ing BLING wheels on both sides in a sin­gle set-up
  • The wear-free direct-dri­ve tech­nol­o­gy con­sis­tent­ly ensures high qual­i­ty long-term
  • High­ly rigid, but still dynam­ic design
  • Largest spin­dle with HSK A63 inter­face, 102 Nm (S1)

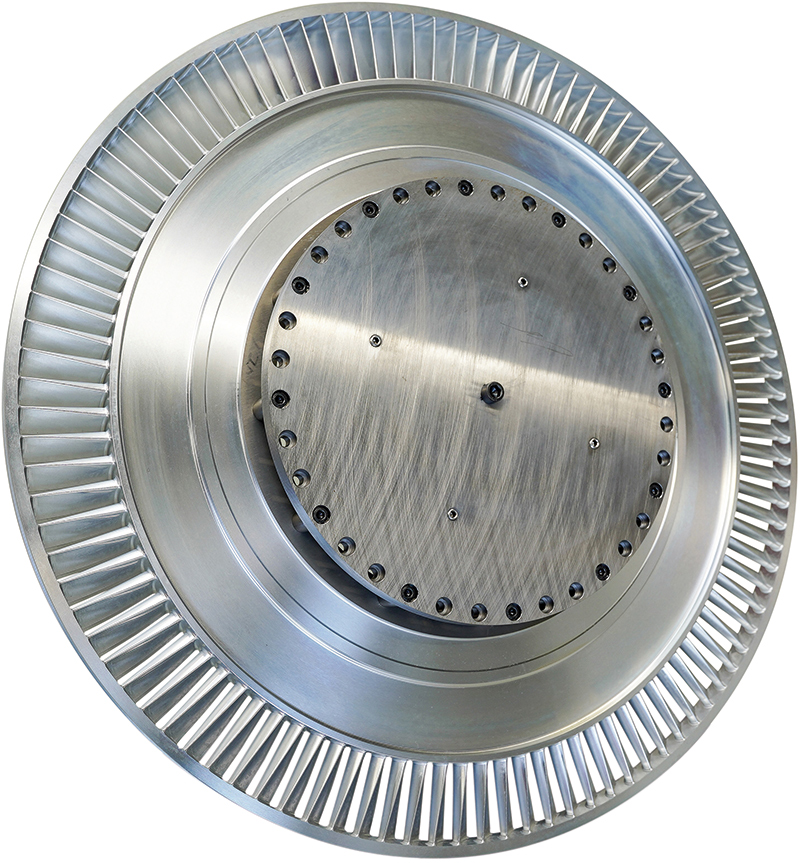

Bling RXU1001DBH

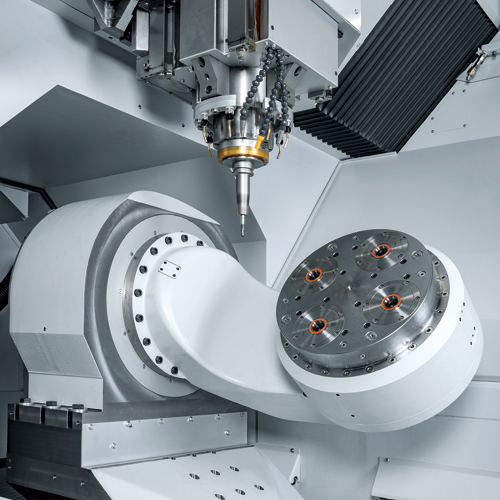

Innenraum RXU1001DBH

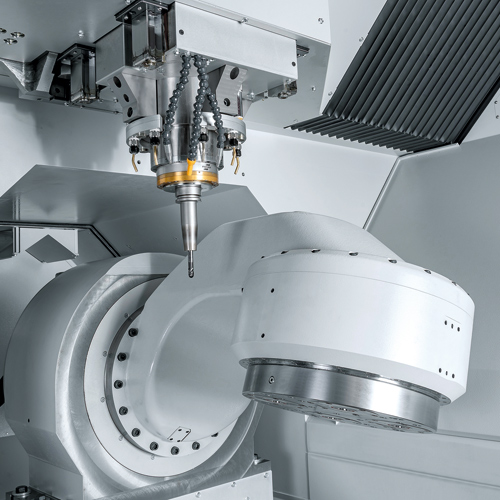

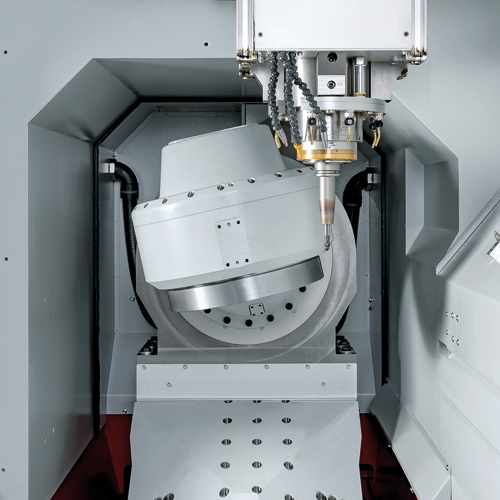

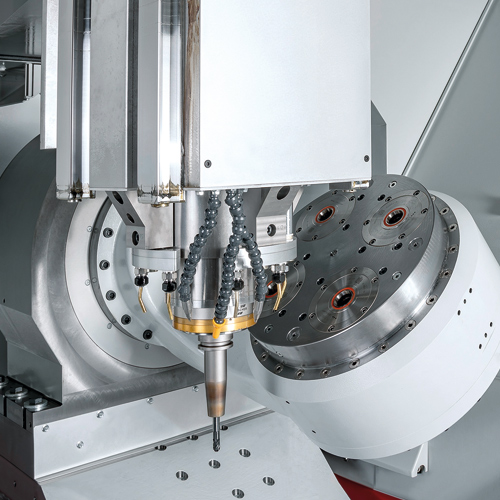

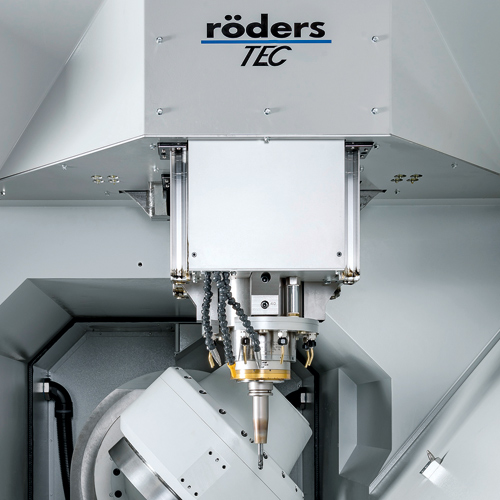

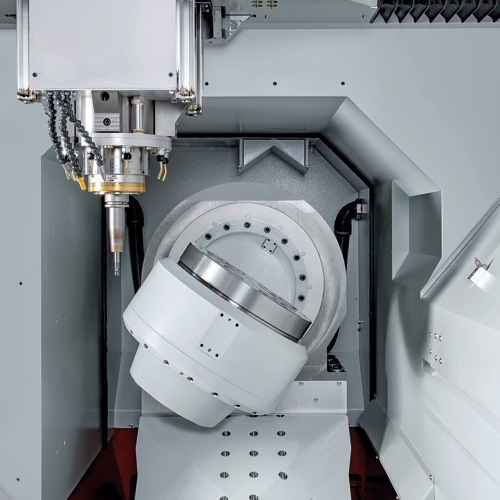

Röders Maschine RXU1001DBH Innenraum
Röders Maschine RXU1001DBH Innenraum
Röders Maschine RXU1001DBH Innenraum
Röders Maschine RXU1001DBH Innenraum
Röders Maschine RXU1001DBH Innenraum

Thanks to the big swiv­el range of the A‑axis, from +45 degrees to ‑195 degrees, BLING wheels can be machined from both sides in a sin­gle set-up to pro­duce excel­lent sur­face fin­ish­es with­out any steps. A sec­ond sup­port for the C‑axis has delib­er­ate­ly been omit­ted to allow access to pock­ets in any posi­tion of the axes. The A‑axis has been rein­forced accordingly.

Tech­ni­cal dataRXU1001DBH
Machin­ing range800 mm x 855 mm x 500 mm
Swiv­el­ling range45 / — 195 degrees (oth­ers on request)
Rota­tion rangeAlmost unlim­it­ed
Table size355 mm round with inte­grat­ed 4‑fold quick clamp­ing sys­tem, oth­ers on request
Work­piece weightmax. 300 kg
Feed0–60,000 mm/min
Milling spin­dle (stan­dard)36.000 rpm, 15 kW, HSK E50, max. tool diam­e­ter 20 mm, oth­ers on request
Tool chang­er24, option­al 40 or more places (chain chang­er – can be loaded dur­ing machin­ing), inte­grat­ed mea­sur­ing laser
Chip dis­pos­alWith 2 screws into chip box behind the machine or with addi­tion­al chip conveyor
Machine weight~21.0 t
Required spaceW 4120 mm x L 4910 mm x H 3600 mm
